Cable Coiling And Binding Machine with Counting And Cutting Feature

Name: Cable Coiling And Binding Machine with Counting And Cutting Feature
Brand: RKNES
Price: 1 USD

Brand Name : RKNES

Model Number : RS-45

Place of Origin : China

MOQ : 1SET

Payment Terms : T/T

Delivery Time : 5-7 days

Packaging Details : Wooden case

Name : Cable Coiling And Binding Machine with Counting And Cutting Feature

Contact Now

Parameter:

Model	RS-45D	RS-45
Function	Count,sort,wind	Count,sort,wind, bind
Winding range	Customized inner core	Customized inner core
Suitable wire	1-8mm	1-8mm
Power supply	AC220/110V 50/60HZ	AC220/110V 50/60HZ
Winding load weight	1.5KG	1.5KG
Binding diameter	No	18-45mm
Size	700x750x360mm	1100x440x430mm
Weight	80KG	90KG

Intro:

The is an automatic machine for cable winding and binding. Also it can count and cut cables to required length, then wind and bind it automatically. Works for long cables winding and binding, such as 5 meters, 10meters, 30 meters. It is programmable, the winding circles, cable length, tie length can be set as per needs.

Suitable:

This cable winding binding machine can work for AC power cord, DC power cord, USB cable, video cable,high-definition cable.
The tie should be plastic tie with iron wire inside. Max 4MM width
Wind diameter can be customized, such as 200mm, 250mm, 300mm
Max binding diameter: 45MM

Parameter:

Features:

1. Can count, cut, wind and bind cables. It can wind cables in good order.
2. Programmable, can set winding circles, cable length, tie length and other parameters easily.
3. We can customize the round winding disk and binding mouth as per winding diameter and binding diameter.
4. Full autoamtic machine, fast count and wind cables.
5. Easy to use, high efficiency.

Cable Coiling And Binding Machine with Counting And Cutting Feature

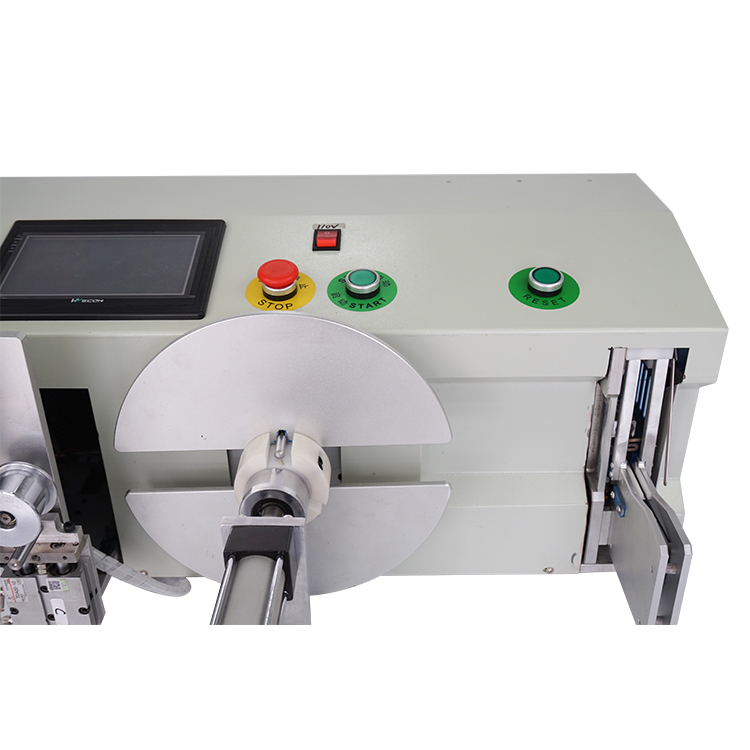

Cable Coiling And Binding Machine with Counting And Cutting Feature Images
