Fully Automatic Cable Winding And Binding Machine for 8 Shape

Name: Fully Automatic Cable Winding And Binding Machine for 8 Shape
Brand: RKENS
Price: 1 USD

Brand Name : RKENS

Model Number : RS-81 RS-85

Place of Origin : China

MOQ : 1set

Payment Terms : T/T

Delivery Time : 7-10 days

Packaging Details : wooden case

Name : Cable binding Coiling Machine

Contact Now

Full Automatic Cable Winding/Coiling And Binding Machine

Intro:

This machine is suitable for winding and tying various transmission lines such as AC power cords, DC power cords, USB data cables, video cables, HDMI high-definition cables, etc. To use this machine, the tie should be insulated iron wires. It can also be used for other purposes that require rubber-coated iron wires for tying , such as clothes hangers and other industries.

Specification:

Model	RS-81
Winding shape	small figure 8, single tying
Applicable cable diameter	≤4mm (depending on cable)
Applicable cable length	≤3m(depending on cable)
Winding spacing	45-70MM
Tying/Binding diameter	≤18
Cable head left length	0-130MM
Cable tail left length	0-130MM
Efficiency	1600 items/hour
Available tie	2mm rubber-coated iron wire
Air pressure requirement	0.6-0.8MPa (need to use clean and dry air source)
Machine size	650x850x1400mm
Machine weight	250KG

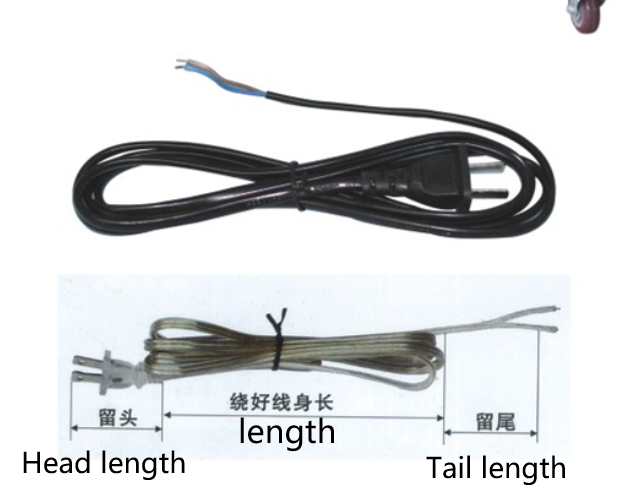

Winding and tying samples

Fully Automatic Cable Winding And Binding Machine for 8 Shape Manufactures

Fully Automatic Cable Winding And Binding Machine for 8 Shape Images
