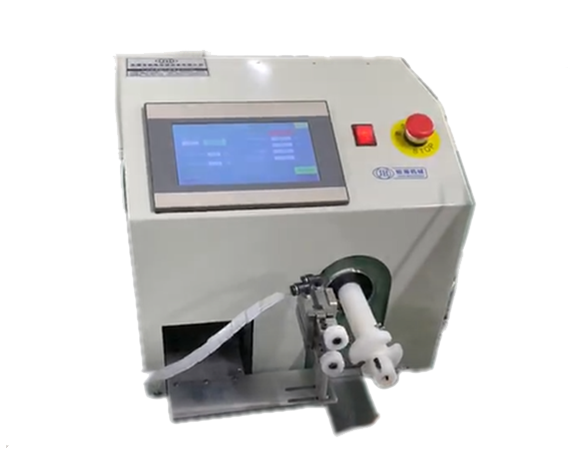

RS-90C Cable Sorting And Coiling Machine / Winding Cables In Good Order

Name: RS90C Cable Sorting And Coiling Machine Winding Cables In Good Order
Brand: RKENS
Price: 1 USD

Brand Name : RKENS

Model Number : RS-90C

Place of Origin : China

Name : Cable coiling machine

Usage : Coil cables in good order

Contact Now

Cable Sorting And Coiling Machine / Winding Cables In Good Order

Intro:

This machine can coil cables in good order. It can not count cables and cut. Different shaft cores can be replaced to coil cable circles with different outer diameters and thicknesses.

This machine can coil cables in good sequence. The coiling inner diameter is customized. Cylinder to control the winding width.

Suitable:

Various cable sorting and coiling.

Specification:

Model	RS-90C
Name	Cable Sorting And Coiling Machine
Machine power supply	220V/110V 50HZ/60HZ
Winding speed	1-6 turns/second
Air pressure	4.5-7KG
Power	500W
Winding diameter	the outer diameter after winding should not exceed 280MM, and the core width shall be within 70MM
Ranking stroke	within 100MM
Winding load	Max 1.5KG
Machine weight	about 65KG
Size	700450360MM
Note	The coil core is customized.

Machine video:

https://youtube.com/shorts/pw15DEvKjEs?feature=share
